HomeNews Shoe Tongue Webbing Loop Sewing Machine

Shoe Tongue Webbing Loop Sewing Machine Sales & Manufacturers & Suppliers

2023-03-03

A shoe tongue webbing loop Sewing Machine is a specialized industrial Sewing Machine that is used for attaching webbing loops to the tongue of shoes. These loops are typically used to help the wearer to pull the shoe onto their foot, and they are an important component of many types of athletic shoes.

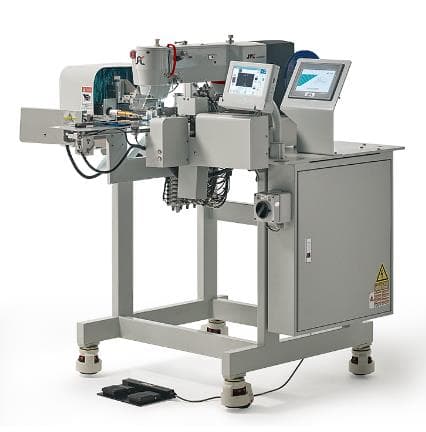

Shoe Tongue Webbing Loop Sewing Machine

The Shoe Tongue Webbing Loop Sewing Machine used for this purpose is designed to work with heavy-duty materials like webbing, and it typically features a specialized presser foot and feed dog that can handle the thickness of the material. The machine may also have a specialized needle and thread for sewing through these materials.


To use the machine, the operator will typically feed the webbing through the machine and position it on the tongue of the shoe in the desired location. They will then engage the machine, which will sew the webbing onto the tongue using a strong, durable stitch.


Overall, the Shoe Tongue Webbing Loop Sewing Machine is an essential tool for shoe manufacturers and repair shops, as it allows them to create sturdy, reliable webbing loops that can withstand the wear and tear of daily use.

Shoe Tongue Webbing Loop Sewing Machine Specification

Item No,JYL-B1510G-XS
Sewing   Area 120x80mm
Maximum Sewing   Speed 2700r.p.m
Sewing TraceSingle Needle Flat   Seam
FeedingIntermittent   feeding(Pulse motor drive mode)
Intermittent   pressure foot  lift17mm
HookShuttle hook
 Presser foot lifting modePulse motor drive mode
Motor AC servo motor 750W direct drive
Air pressure0.5MPa 1.8L/min
Power   supply Single-phase 220V
Machine Size1320×1000×1280MM
Weight 210KG
